Portable Full band 300-6ghz drone jammer integarted detection FPV defense system

Portable Full band 300-6ghz drone jammer integarted detection FPV defense system
Portable Full band 300-6ghz drone jammer integarted detection FPV defense system
Portable Full band 300-6ghz drone jammer integarted detection FPV defense system Portable Full band 300-6ghz drone jammer integarted detection FPV defense system Portable Full band 300-6ghz drone jammer integarted detection FPV defense system Portable Full band 300-6ghz drone jammer integarted detection FPV defense system
Informacion basica
Lugar de origen: Shenzhen China
Nombre de la marca: TeXin
Certificación: CE ISO
Número de modelo: TX-CD006
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: estuche duradero
Tiempo de entrega: 5-8 días
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente: 1000/mes
Mejor precio Contactar ahora
Información detallada
Nombre: Escudo de drones portátiles potencia de salida: > 200 W
Características: Interferencia y detección Solicitud: Sistema contra drones
Fuente de alimentación: Batería externa Fuente de alimentación: 220V
Distancia de detección: 1,5-2 km Peso: 6.5 kg
Material: Aluminio
Resaltar:

Portable drone jammer 300-6GHz

,

FPV defense system jammer

,

Full band wireless signal jammer

Descripción de producto

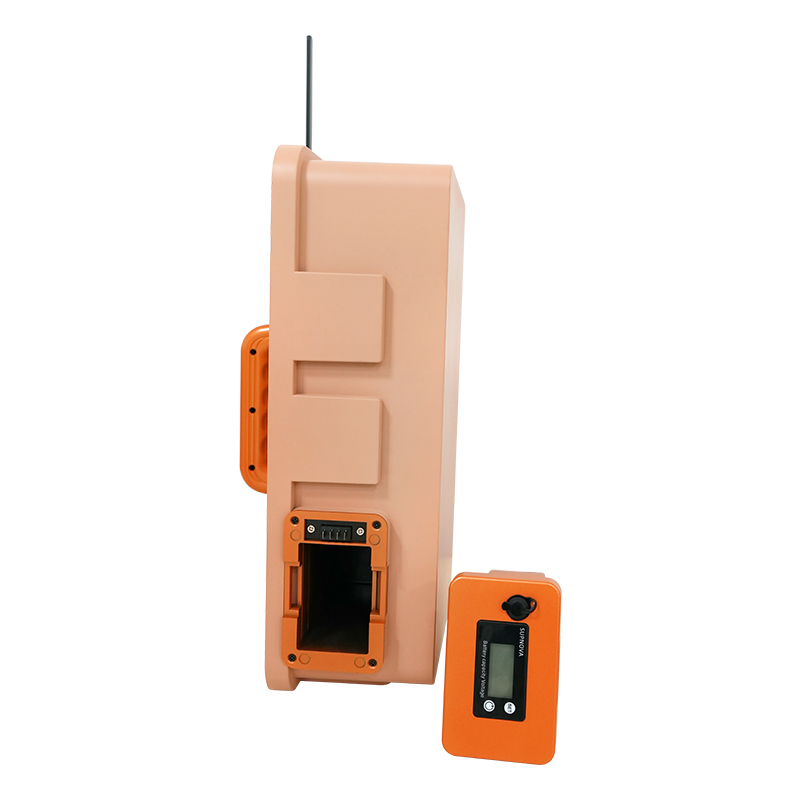

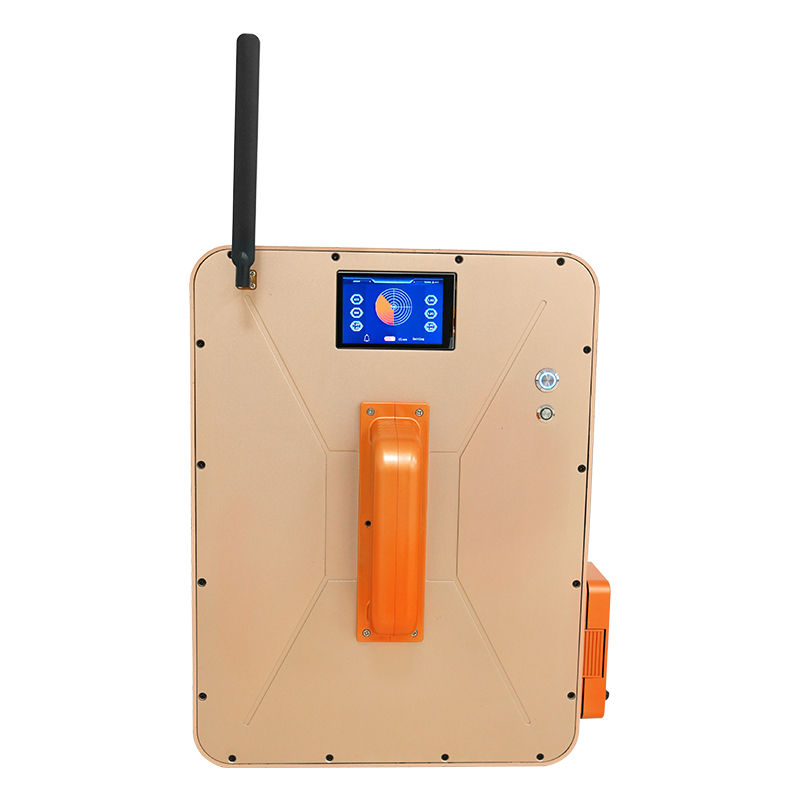

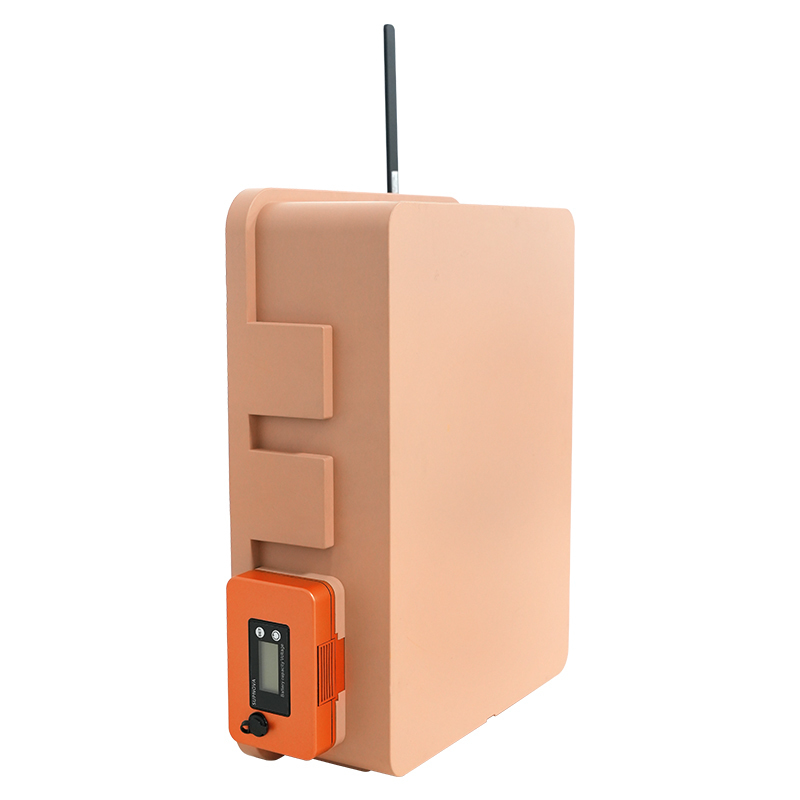

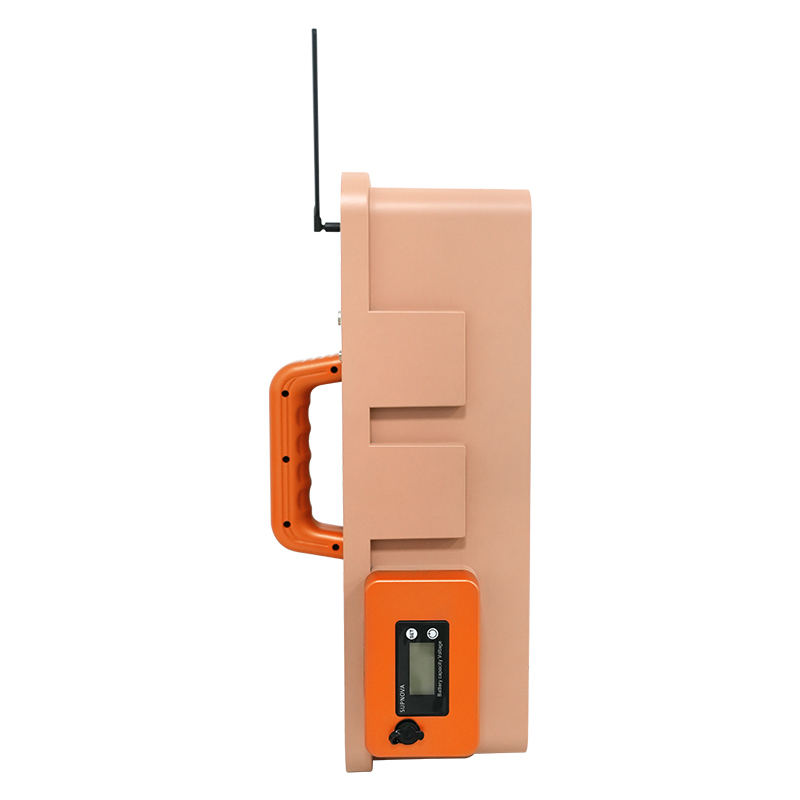

Portable Full Band 300-6000MHz Drone Jammer Integrated Detection FPV Defense System

This portable drone jammer detection device, developed by Texin, features a waterproof, dirt-resistant, and high-temperature-resistant exterior. While working outdoors, it allows users to quickly predict and warn of potential drone threats. Activating the jammer function cuts off the transmission channel between the drone and the remote control, protecting personal safety.

  • 1.5-2km jamming with detection distance
  • External battery last time 4-5 hours
  • Directional jammer can adjust 360 degree
  • Full band 400-6000MHz frequency band jamming with detection range
  • The display screen can read the drone's position for quick defense
  • Anti-slip handle design for easy carrying
Jamming Parameters
Product Type Portable detection integrated jammer shield
Detecting frequency 1GHz-1.3GHz 2.4GHz-2.5GHz 5GHz-6GHz
Jamming Range 1000-1500m
Detect refresh time 3S
Number of drone ≥100
Working way Drive away
Detecting Range 360°
Antenna High gain 3dbi
Working Channels Customized 410-485 MHz (433 MHz) 10W
840-920 MHz (900MHz) 40W LORA module offered
1100-1280 MHz (1.2 GHz) 10W
1300-1390 MHz (1.4 GHz) 10W
1560-1620 MHz (1.5 GHz) 20W
2400-2500 MHz (2.4 GHz) 50W
5150-5350 MHz (5.2 GHz) 30W
5725-5850 MHz (5.8 GHz) 50W
Total Output Power >200W
Body Weight 6.5 kg
Working Temperature -40ºC to +65ºC
Working Humidity 35~85%
Battery lithium battery
Battery Lasting Time 50-60 minute
Detection Parameters
Detection principle It based on spectrum perception and artificial intelligence technology to identify and classify the flight control link and figure transmission link of drone. It can detect figure transmission type and frequency of drone.
Detection type Detect DJI series drones, speedy bee and DIY figure transmission drones, covering more than 97% of models on the market.
Multi-frequency band detection Detect conventional frequency band(1.2GHz,2.4GHz-2.5GHz,5.2GHz-5.9GHz) models with figure transmission and it with low false alarm rate.
Multi-frequency band jammer support (customize) Without any external unit, it is highly integrated and integrated design, with the ability to attack drones that conventionally use remote control image transmission frequency bands such as 2.4GHz and 5.8GHz, and has the ability to interfere with GPS (can be expanded to other frequency bands).
Stronger jammer effect In order to achieve better interference effect with the new drone Mavic3, we have carried out targeted design. By studying the technical specifications and working principles of Mavic3, we determined the targeted interference strategy.
Convenient The carefully designed lightweight size makes the device very convenient to carry and operate, whether it is stored in the vehicle or carried to different workplaces, ergonomic design of the handle, to provide users with a comfortable holding experience, reduce the fatigue of operation
Easy operate No additional external equipment is required, just turn on the power detection, detect the frequency of the drone click on the screen, the display is gray, press the strike button, the screen displays red "ripple" and continuous "drip" sound, indicating that the work has started, press the strike button again, the "drip" sound stops indicating that the strike stops working.
How to Use
  1. Turn on the detection switch
  2. Turn around and find the position of the drone
  3. The screen will show the direction of the drone, and you can turn on the interference mode according to the direction of the drone
  4. Aim at the interference object, and after 3-5 seconds the drone will be forced to return or make an emergency landing.
Customer Service
  • User Instruction: we can offer online details photo illustration and video; local instruction is also available but with extra cost
  • Online technical support: our professional engineers will assist customers with technical problems
  • After sales service: our company will perform the agreed responsibility and duty during the warranty period
  • Free training lesson and daily maintenance
  • Fast reply of customer feedback and question
  • All product enjoy the 1 year warranty and Life time maintenance service
Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 0
Texin Factory Products Line

With the expansion of business, Texin has now opened more than 10 production lines, which can support large-volume orders. We have advanced debugging equipment and a professional technical team. Our drone countermeasure equipment is sold all over the world. Excellent products and high-quality services have won unlimited praise from customers. If you have any ideas, please feel free to consult. Shenzhen Texin Electronics Co., Ltd. looks forward to cooperating with you!

Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 1 Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 2 Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 3 Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 4 Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 5 Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 6 Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 7
Exhibition
Portable Full band 300-6ghz drone jammer integarted detection FPV defense system 8
Application

Prisons, government, Oil and Gas Storage Facilities and fields, Churches, Theaters, News Conference Rooms, Libraries, Museums, Courts, Border Patrol and Drug Enforcement, Customs, mosques, etc.

FAQ
1. Are you a manufacturer?
Yes, our factory locates in LongGang District, Shenzhen, welcome to visit us here
2. MOQ?
1 to 100pcs
3. Payment term?
T/T, Alibaba Trade Assurance(Visa, Mastercard, E-checking,etc), WestUnion, Paypal, etc
4. How to proceed an order?
A. Let us know your requirement and product application through inquiry on Alibaba website
B. We quote according to your specific need
C. Customers agree with the quotation and make the payment
5. How to do if I receive defective products?
Our strict quality control will ensure 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you new electronic part or product.
