Professional Ultra band 2000-7200mhz 100W power amplifier module for drone jammer

Informacion basica
Lugar de origen: PORCELANA
Nombre de la marca: TeXin
Certificación: SGS,ISO9001
Número de modelo: TX-CD100W
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: Caso o caja durable
Tiempo de entrega: 3-5 días
Condiciones de pago: L/C, D/A, D/P, T/T, Western Union, Moneygram
Capacidad de la fuente: 50,00PCS/Month
Información detallada
Frecuencia: 2000-7200MHz (personalizado) Voltaje de prueba: 28-32V
Actual: 9A Producción: 100W
Ganar: dBm 53 Estabilidad de la salida: 1dB
Conector: N/ Mujeres Tamaño de la cáscara exterior: Las medidas de ensayo se aplicarán en el caso de los vehículos de las categorías M1 y M2.
Peso: 1316g Temperatura laboral: -40 ~ + 65
Material de concha: Aluminio Solicitud: Un bloqueador de drones
Resaltar:

RF amplifier module 100W

,

drone jammer power amplifier

,

Ultra band amplifier 2000-7200MHz


Descripción de producto

Professional Ultra band 2000-7200mhz 100W Power Amplifier Module for Drone Jammer

Professional Ultra band 2000-7200mhz 100W power amplifier module designed by Texin, it is ultra band range 2000-7200mhz in one module. Users can install it by themselves to interfere with drones in the range from a distance, and the band 2000-7200mhz 100W power amplifier module supports customization.

The wide band power amplifier jammer module can be applied in areas with high requirements for low-altitude safety, such as airports, military restricted areas, large-scale event venues, chemical parks, and nuclear power plants. For example, at airports, it can prevent drones from entering no-fly zones, ensuring the normal takeoff and landing of flights; at large event venues, it can prevent illegal drone filming, maintaining safety and order at events.

Technical Parameters
Description Symbol Min Typ Max Unit Remark
Operating Frequency BW 2000 7200 MHz
Input Power Pin 0 dBm
Output Power CW Psat 47 48 49.5 dBm Continuous Wave
Power Gain Gp 48 dBm @ Pin=0 dBm
Power Gain Flatness △Gp ±1.5 dB @ Pin=0 dBm
Input Return Loss S11 -15 dB
Operating Voltage Vdc 28 28 36 V
Current Consumption A 7 9 A @ Pout=50~85W
RF Connector Input SMA, Female
RF Connector Output SMA, Female
Max Input Power PinMax ≤10 dBm
Interface Definition VDD A1: 28Vdc
GND A2: Ground
Enable 1: 5V~Vdd:ON 0V:OFF
Note: 1. The overall dimensions are for reference only; 2. The size can be appropriately increased or decreased according to the customer's requirements; 3. The positions of the input interface, output interface and power supply interface can be changed according to the actual needs of the customers.
Professional Ultra band 2000-7200mhz 100W power amplifier module for drone jammer 0
Product Features
  • Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, it's compatible with multiple brands and types of drones without additional debugging.
  • High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
  • Strong adaptability and high durability: Utilizing industrial-grade components and an anti-interference shielding design, it can withstand temperatures ranging from -20°C to 60°C and humidity levels of 5% to 95%.
  • Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.
Product Application

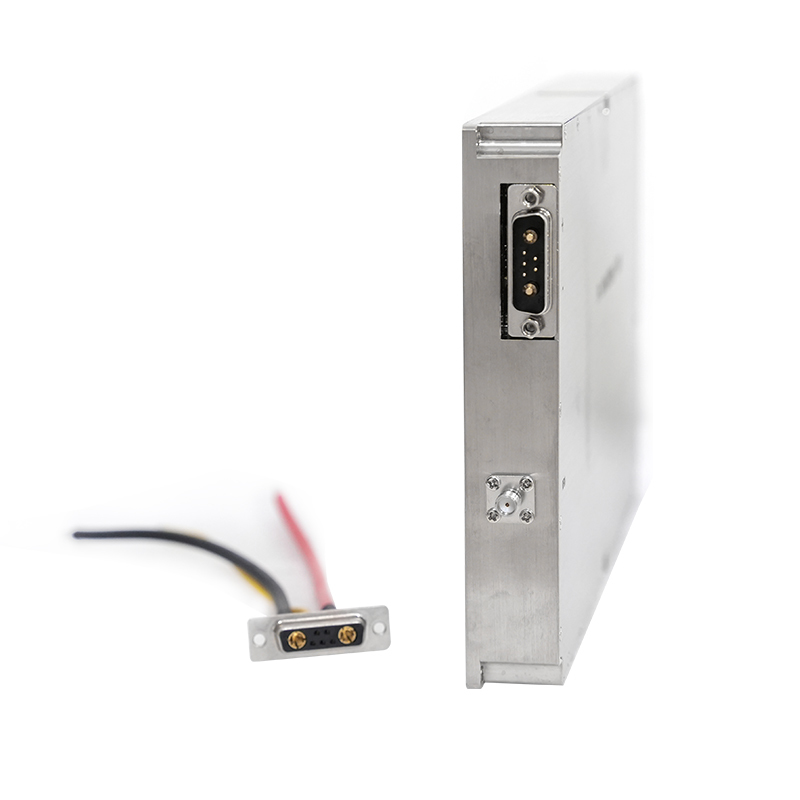

Professional Ultra band 2000-7200mhz 100W power amplifier module for drone jammer 1
Factory Pictures

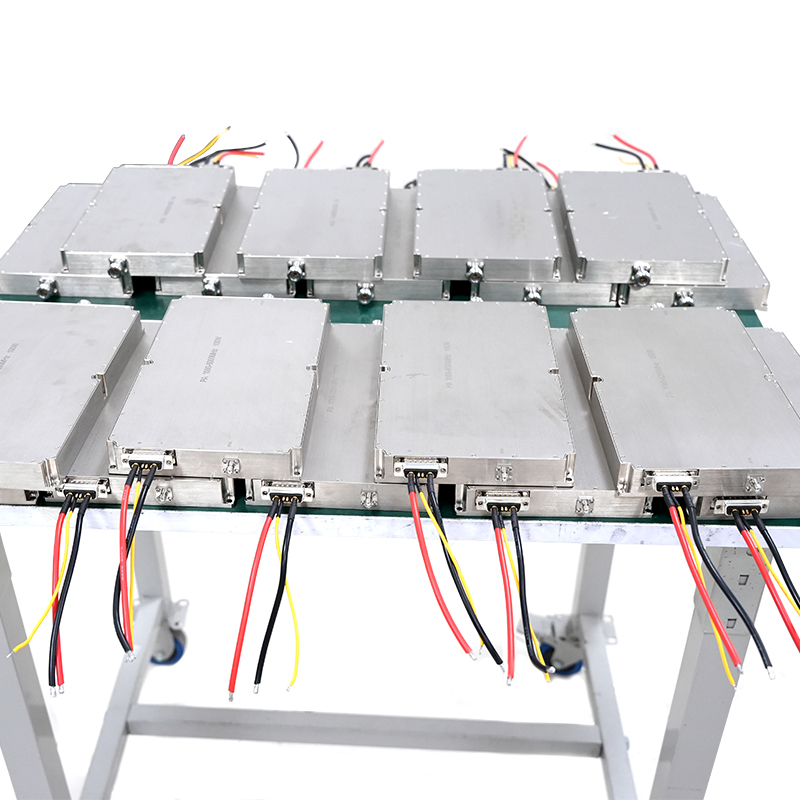

Professional Ultra band 2000-7200mhz 100W power amplifier module for drone jammer 2

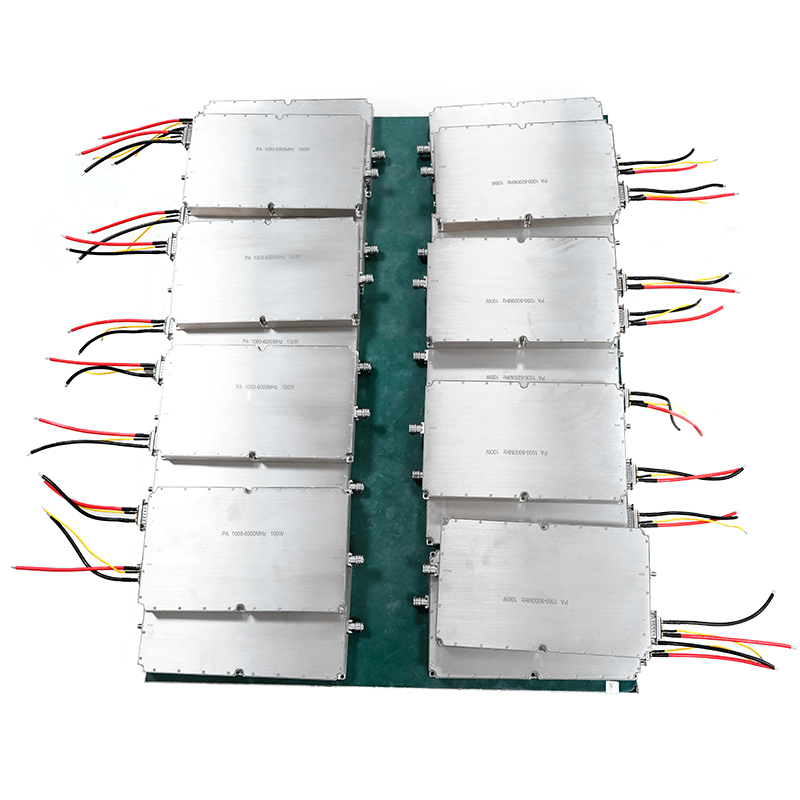

Professional Ultra band 2000-7200mhz 100W power amplifier module for drone jammer 3
Professional Ultra band 2000-7200mhz 100W power amplifier module for drone jammer 4
FAQ
  • Are you a manufacturer?
    Yes, our factory is located in Longgang District, Shenzhen, welcome to visit us here
  • MOQ?
    1 to 100pcs
  • Payment term?
    T/T, Alibaba Trade Assurance(Visa, Master card, E-checking,etc), WestUnion, Paypal, etc
  • How to proceed with an order?
    A. Let us know your requirements and product application through inquiry on Alibaba website
    B. We quote according to your specification
    C. Customers agree with the quotation and make the payment
  • What do if I receive defective products?
    Our strict quality control will ensure a 100% pass rate. But it can be damaged in the way. Please kindly share the defective product photo or video to let us know where the problem is. We will make the compensation accordingly or send you a new electronic part or product.
