Inicio > Productos> antena de la alta ganancia> Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station

Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station

Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station
Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station
Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station
Informacion basica
Lugar de origen: Porcelana
Nombre de la marca: TeXin
Certificación: SGS,ISO9001
Cantidad de orden mínima: 1
Precio: Negociable
Detalles de empaquetado: Caso o caja durable
Tiempo de entrega: 3-5 días
Condiciones de pago: LC, D/A, D/P, T/T, Western Union, MoneyGram
Capacidad de la fuente: 50,00PCS/Month
Mejor precio Contactar ahora
Información detallada
Frecuencia: 100-1000mhz (personalizado) Ganar: Entre 5 y 10 dB
VSWR: ≤2 Polarización: Vertical
Impedancia de entrada: 50Ω Potencia de entrada: 100W
Temperatura de funcionamiento: 40～80º Tamaño de la cáscara exterior: 302*237*333mm
Peso: 1.95 kg Conector: N Conector
Material de concha: Cobre
Resaltar:

wide band directional antenna 100-1000MHz

,

waterproof outdoor antenna for base station

,

high gain antenna 100W with warranty

Descripción de producto

Wide Band 100-1000MHz 100W Directional Waterproof Outdoor Antenna

This 100W 100-1000MHz double-ridged horn antenna provides stable output in complex and harsh environments without interference. Commonly used in satellite communications, signal base station construction, and drone countermeasure equipment.

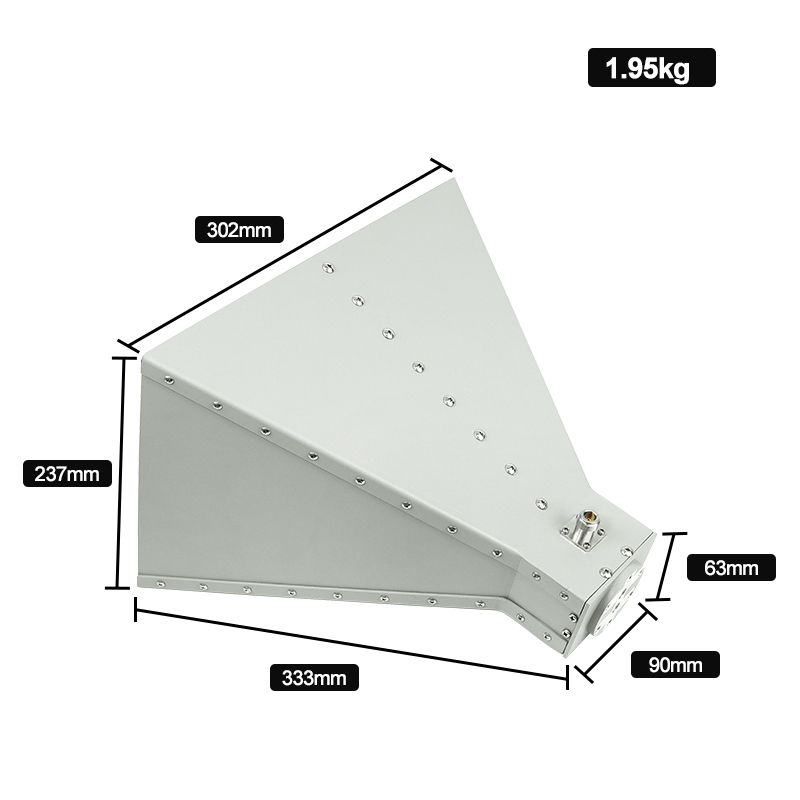

Dimensions: 302×237×333mm
Weight: 1.95kg

Technical Specifications
Item Data Unit
Frequency100-1000MHz
Output100W-
Gain5-10dBm
PolarizationVertical-
Input Impedance50ΩdB
Input Connector TypeN-
Lightning ProtectionDC GrounddB
Cable TypeRG316-
Output Connector VSWR≤1.50 (No power and VNA test)-
Outer Shell Size302×237×333mm
MaterialCopper-
Weight1.95kg
Work Temperature-40~+65℃
InstallationMachine installation-
Vibration RequirementCar load OK-
Product Images

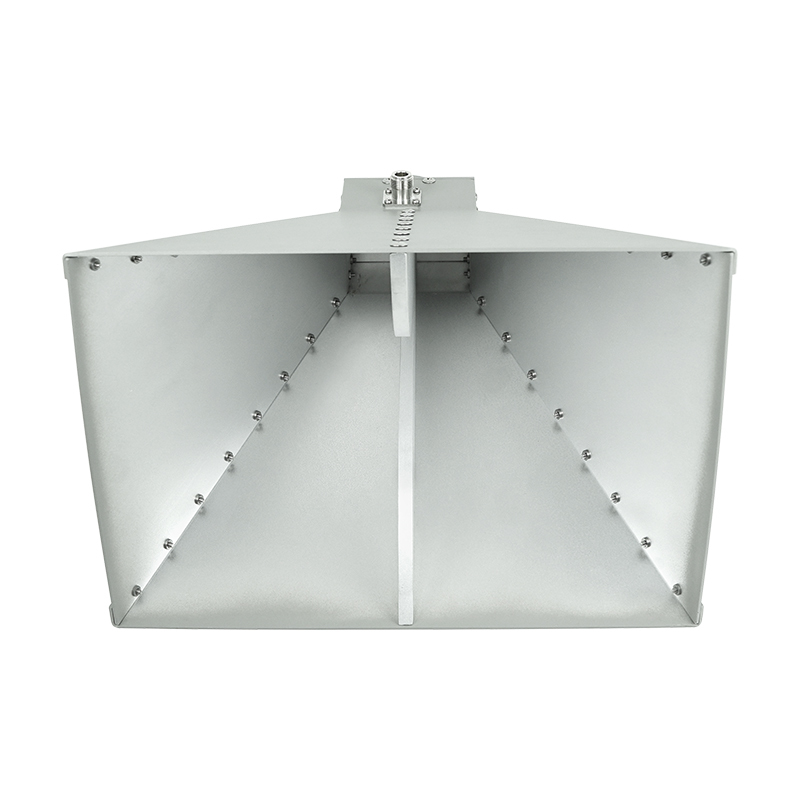

Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station 0

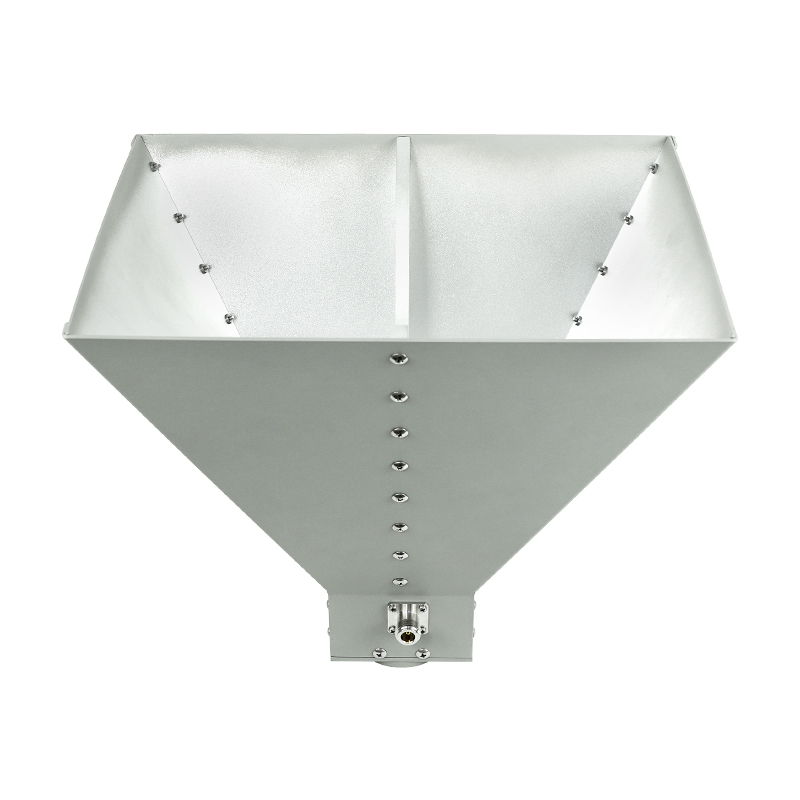

Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station 1
Product Features
  • Wideband, precise coverage, and strong adaptability: Focusing on the 300-2000MHz core frequency band, compatible with multiple brands and types of drones without additional debugging.
  • High power and high gain for outstanding transmission capabilities: 50W high power output paired with 47dB high gain.
  • Strong adaptability and high durability: Utilizing industrial-grade components and anti-interference shielding design, withstands temperatures from -20°C to 60°C and humidity levels of 5% to 95%.
  • Lightweight, easy to install, and highly practical: The module weighs less than 150g and is compact.
Product Application
Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station 2
Frequently Asked Questions
Are you a manufacturer?
Yes, our factory is located in Longgang District, Shenzhen. Welcome to visit us here.
MOQ?
1 to 100pcs
Payment term?
T/T, Alibaba Trade Assurance (Visa, Master card, E-checking, etc), WestUnion, Paypal, etc.
How to proceed with an order?
A. Let us know your requirements and product application through inquiry on Alibaba website
B. We quote according to your specification
C. Customers agree with the quotation and make the payment
What to do if I receive defective products?
Our strict quality control ensures a 100% pass rate. However, products can be damaged in transit. Please share photos or videos of any defective products, and we will provide compensation or send replacement parts.
Factory Pictures
Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station 3
Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station 4
Wide band 100-1000mhz 100Wdirectional Waterproof outdoor Horn antenna for signal base station 5
