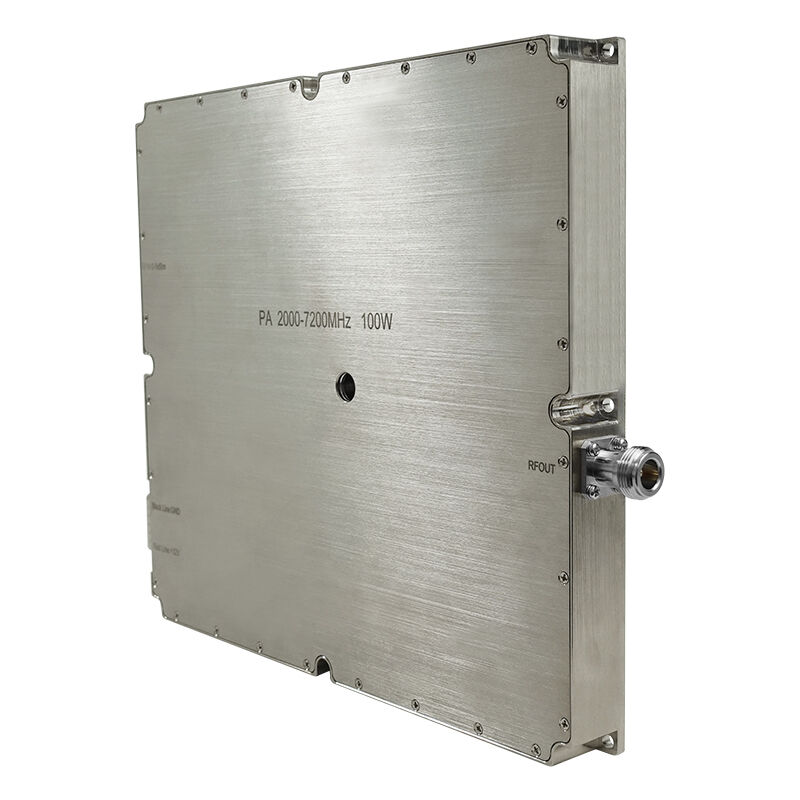

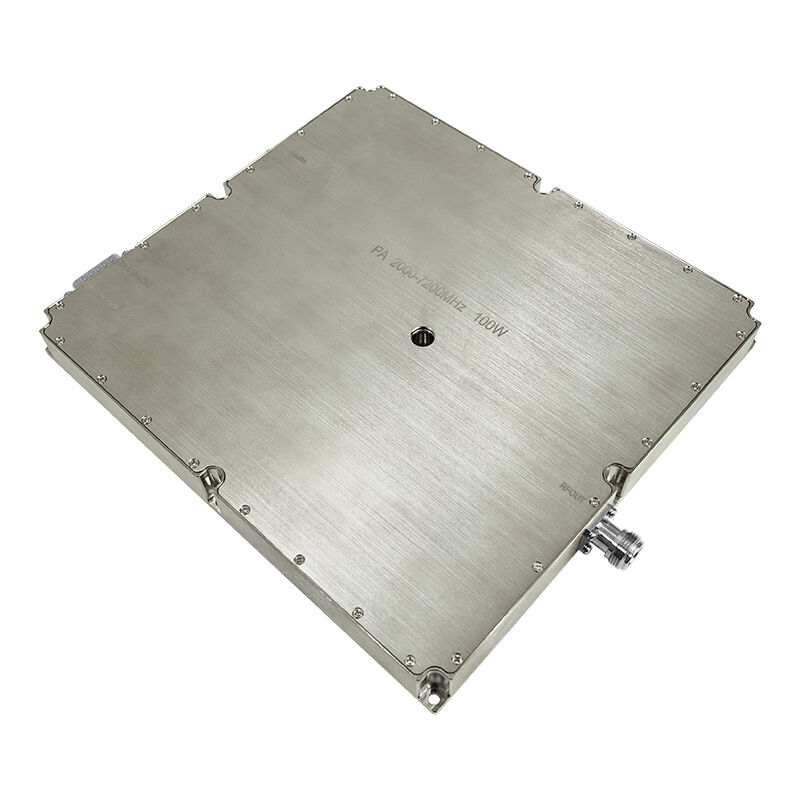

50 dbm output broad band PA power amplifier module for Safety protection

This 100W broadband power amplifier (2000-7200MHz) is functionally designed to shield specific signals, such as those from mobile phones, GPS, Wi-Fi, drones, and BeiDou Navigation Satellite System. This shielding capability is crucial for security and privacy applications where controlling or limiting the reception of these signals is necessary. By effectively jamming or attenuating these frequencies, the amplifier helps prevent unauthorized communications, interference, or tracking, thus providing a secure environment for sensitive operations.

• Product Name: Broadband Power Amplifier
• Frequency Range: 2000-7200MHz
• Gain: <50dbm
• Brand: Texin
• Warranty: 1 Year
• High-performance PA power amplifier module
• Broad band power amplifier suitable for various applications
• Available in 50W and 100W power amplifier options

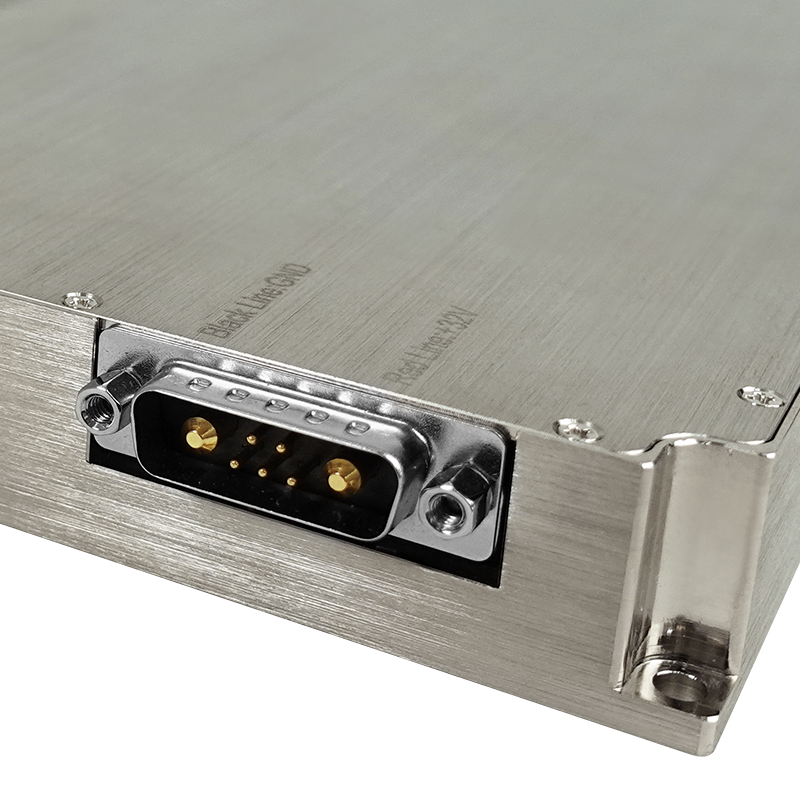

• VDD: A2 - 28Vdc
• GND: A1 - Ground
• Enable: 1 - 5V~Vdd:ON 0V:OFF

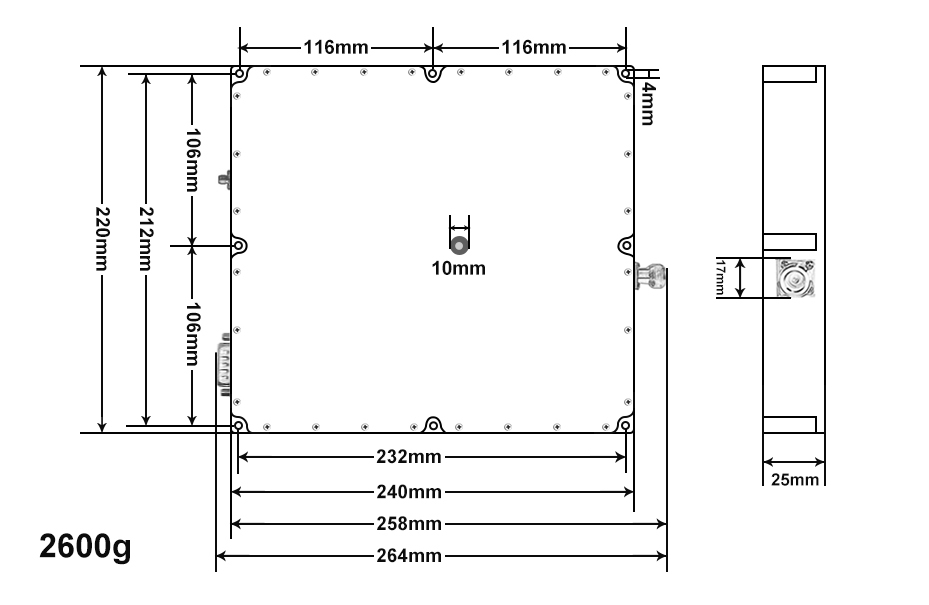

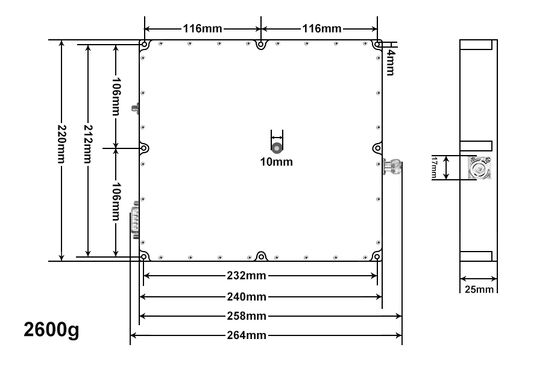

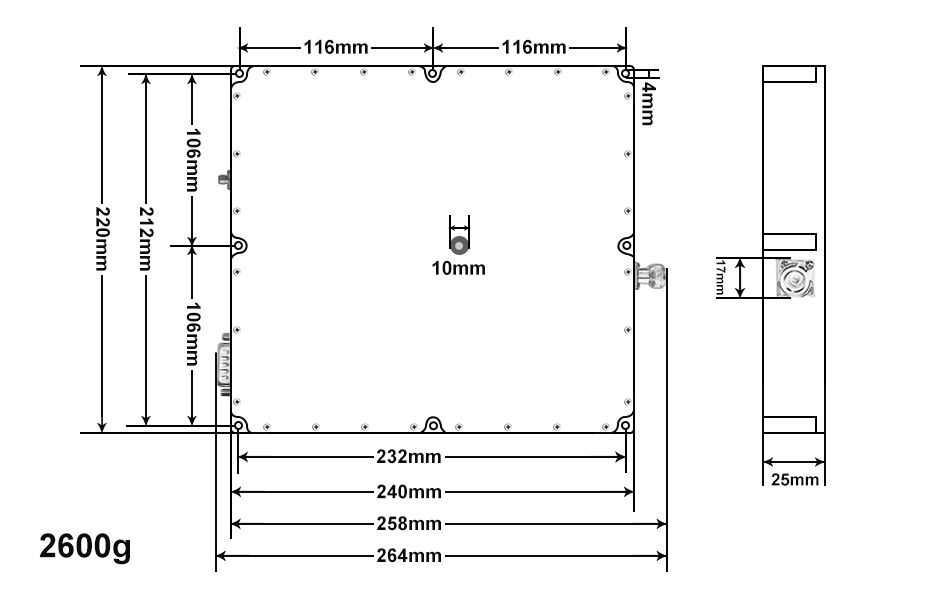

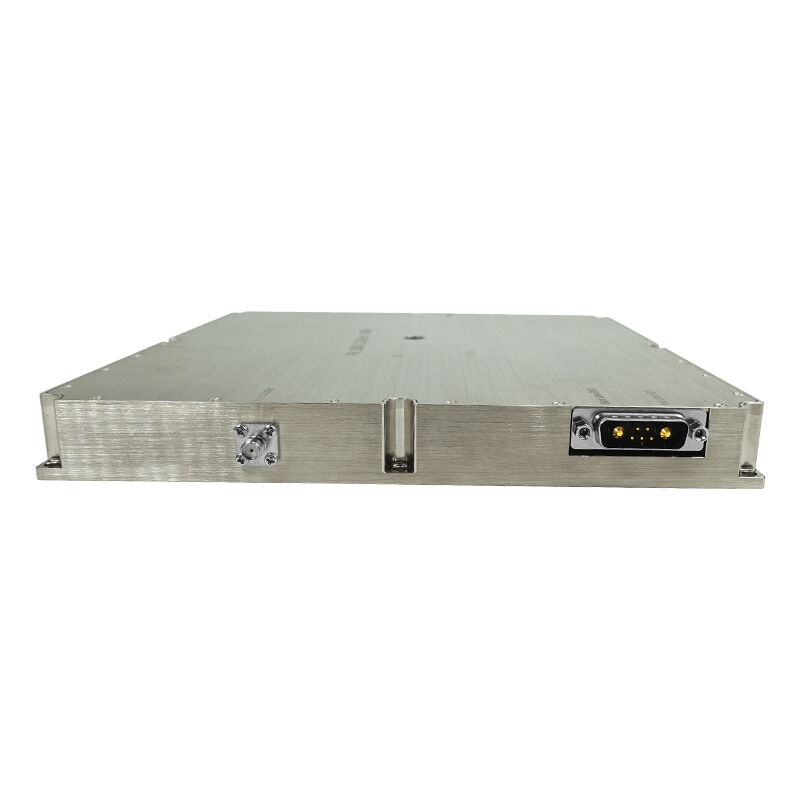

Note: 1. The overall dimensions are for reference only; 2. The size can be appropriately increased or decreased according to the customer's requirements; 3. The positions of the input interface, output interface and power supply interface can be changed according to the actual needs of the customers.

The Texin 100W 2000-7200MHz broadband power amplifier is an advanced and reliable solution applicable to various scenarios, such as wireless network communication, drone countermeasures, and radio frequency fields. Manufactured in Texin's factory in Shenzhen, Guangdong, China, this product ensures superior signal integrity and performance through high quality and excellent service. Its 28V supply voltage allows it to efficiently support various harsh environments, meeting stable and powerful amplification requirements.
